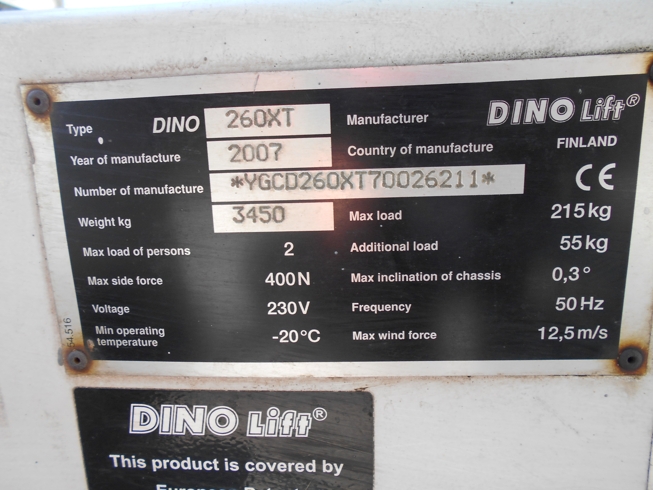

260XT (YGCD260XT70026211)
260-2
In category Trailer-mounted

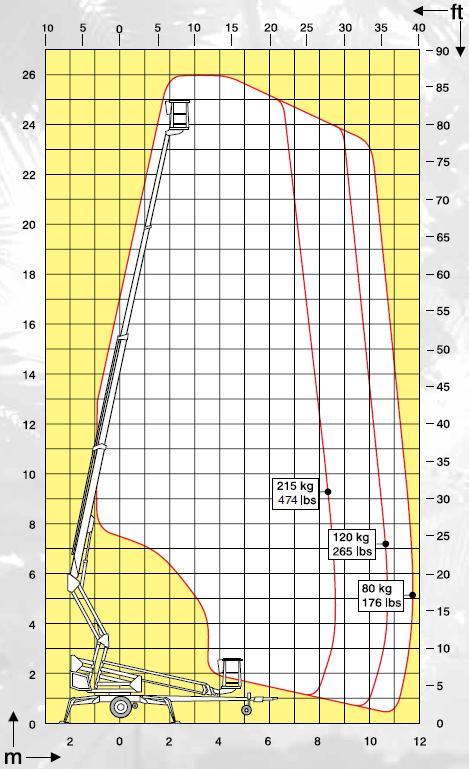

The values in the column labeled associated with working diagram.
|
Parameter
|
Identification
|
Value
|
|---|---|---|
| Manufacturer | Dino-Lift | |
| Type | přívěsné | |
| Field of application | zpevněný podklad | |
| Design | kloubovo-teleskopická | |
| Working height - radius (m) | A | 26 |
| Maximum outreach (m) | B | 11.7 |
| Cage load capacity (kg) | 215 | |
| Total machine weight (kg) | 3450 | |
| Drive | benzín / 230 V | |
| Cage dimensions (m) | D x C | 1,45 x 0,7 |
| Cage extension - prolongation (m) | E | - |
| Setting dimensions (m) | F x G | 4,4 x 4,4 |
| Clearance width (m) | H (I) | 2,04 |
| Clearance height (m) | J | 2,33 |
| Length (m) | K | 8,25 |
| Levelling supports | 4x |
