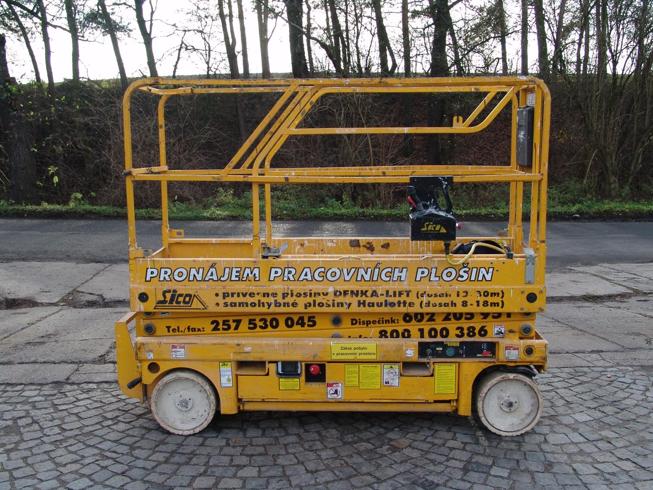

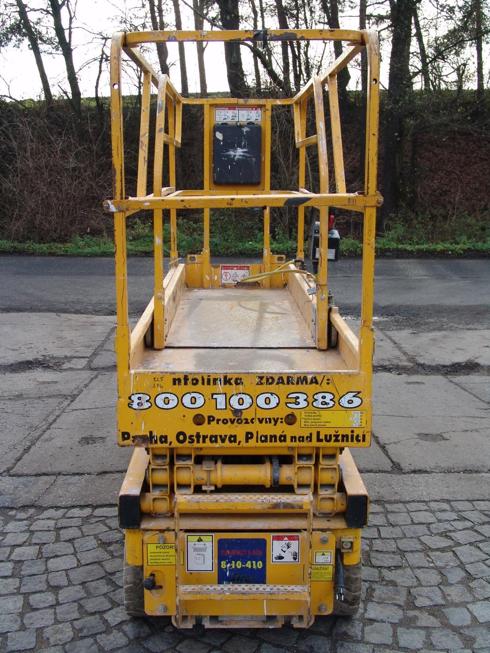

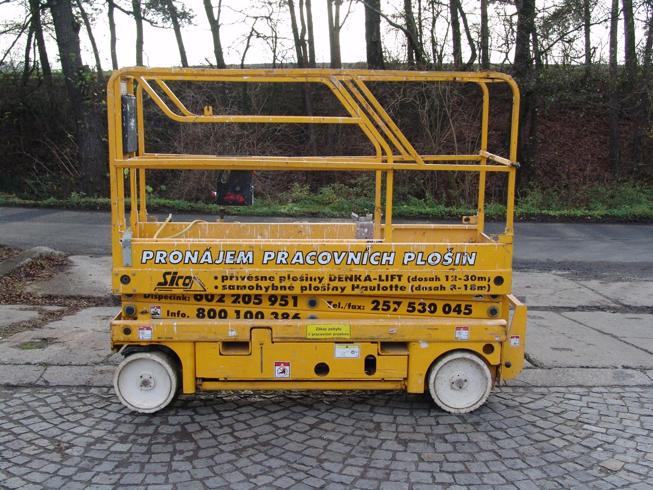

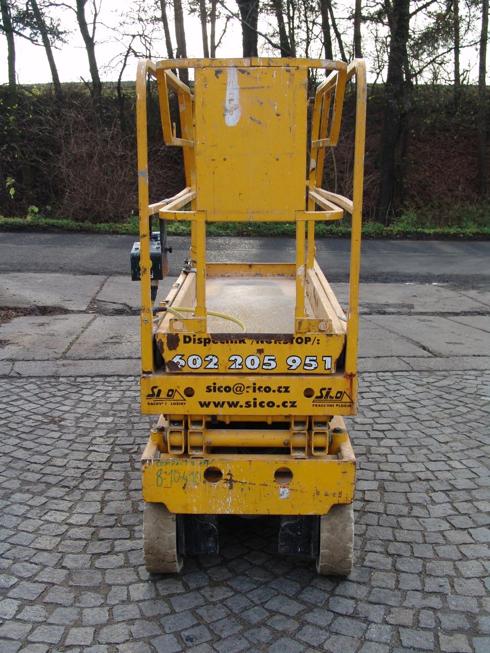

COMPACT 8 (CE 116410)
C8-10
In category Scissor battery
The values in the column labeled associated with working diagram.
|
Parameter
|
Identification
|
Value
|
|---|---|---|
| Manufacturer | Haulotte | |
| Type | nůžkové - aku | |
| Field of application | zpevněný podklad | |
| Design | nůžková | |
| Working height - radius (m) | A | 8.18 |
| Maximum outreach (m) | B | 0.92 |
| Cage load capacity (kg) | 350 | |
| Total machine weight (kg) | 1730 | |
| Drive | aku | |
| Cage dimensions (m) | D x C | 2,3 (3,22) x 0,8 |
| Cage extension - prolongation (m) | E | 1x 0,92 |
| Setting dimensions (m) | F x G | 2,42 x 0,81 |
| Clearance width (m) | H (I) | 0,81 |
| Clearance height (m) | J | 1,99 (1,14) |
| Length (m) | K | 2,42 |
| Levelling supports | - |
