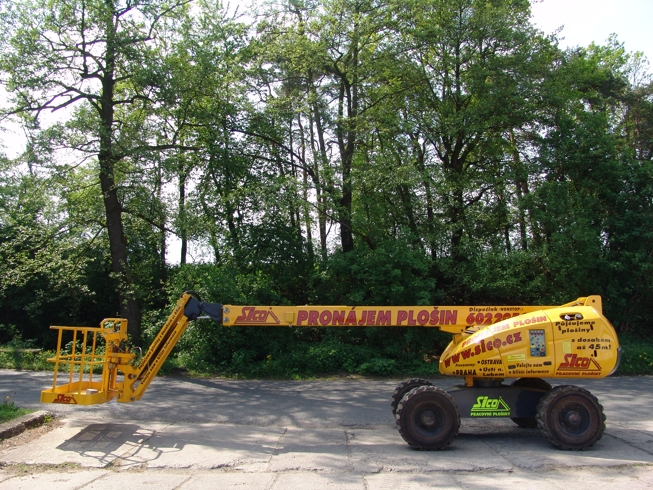

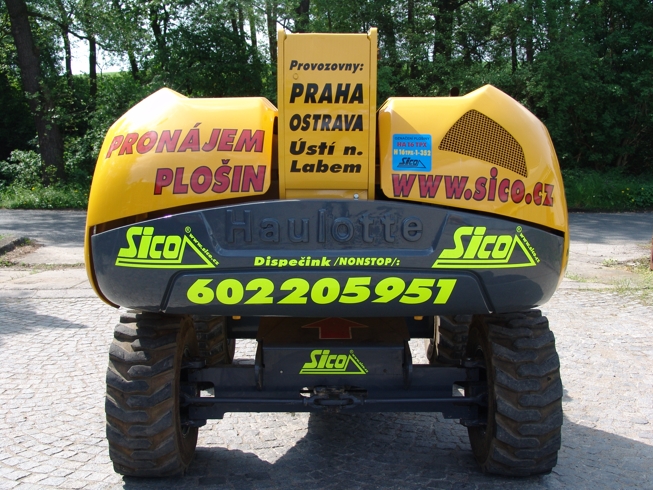

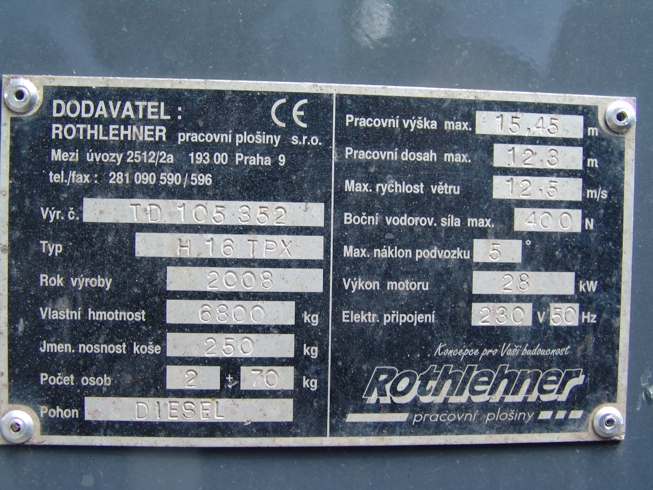

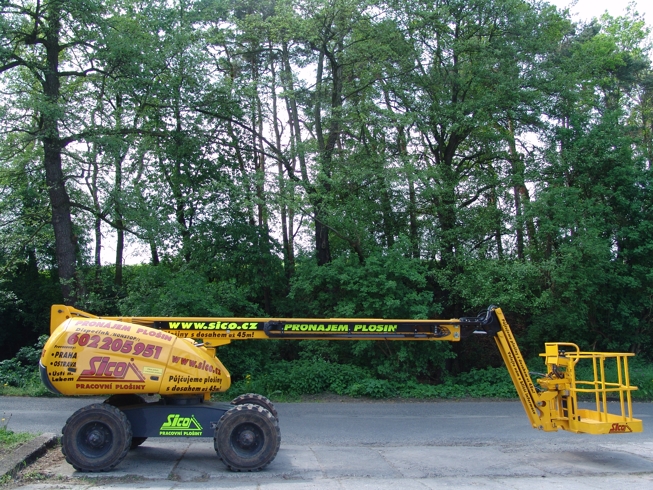

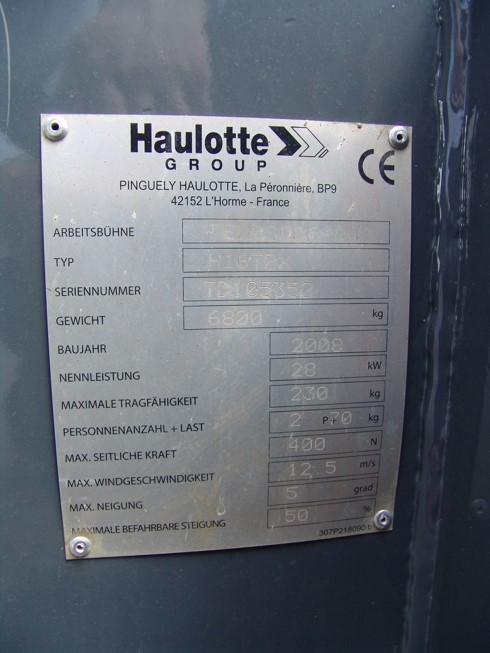

H 16 TPX (TD 105352)
H16-1
In category Telescopic
The values in the column labeled associated with working diagram.
|
Parameter
|
Identification
|
Value
|
|---|---|---|
| Manufacturer | Haulotte | |
| Type | Telescopic - diesel | |
| Field of application | Less challenging terrain | |
| Design | Telescopic with JIB arm | |
| Working height - radius (m) | A | 15.44 |
| Maximum outreach (m) | B | 12.3 |
| Cage load capacity (kg) | 230 | |
| Total machine weight (kg) | 6650 | |
| Drive | diesel | |

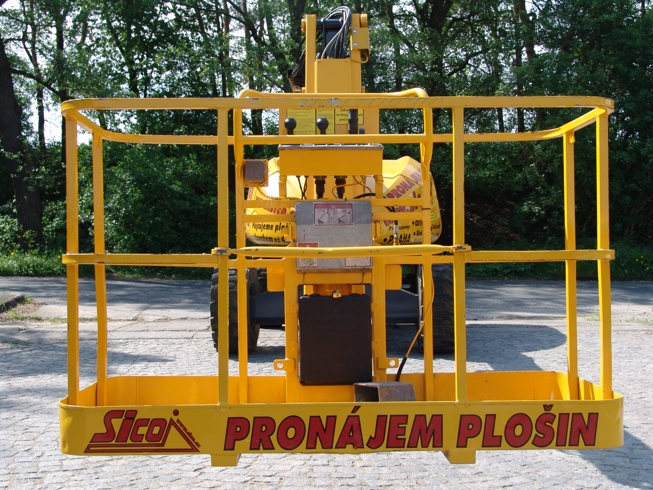

| Cage dimensions (m) | D x C | 1,8 x 0,8 |
| Cage extension - prolongation (m) | E | - |
| Setting dimensions (m) | F x G | 8,42 x 2,3 |
| Clearance width (m) | H (I) | 2,3 |
| Clearance height (m) | J | 2,21 (2,5) |
| Length (m) | K | 8,42 (6,71) |
| Levelling supports | - |
