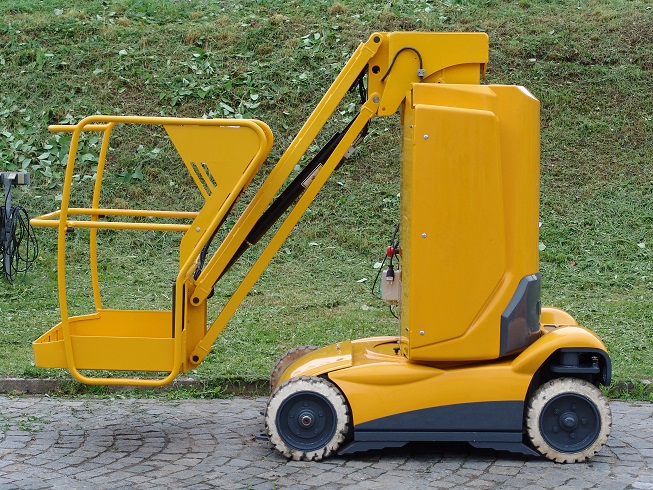

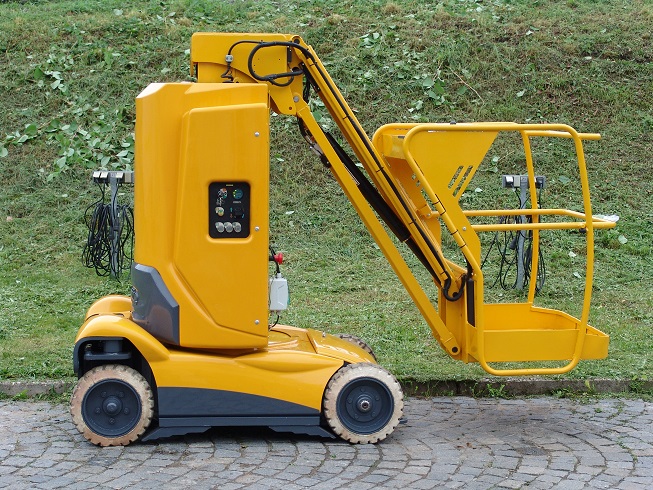

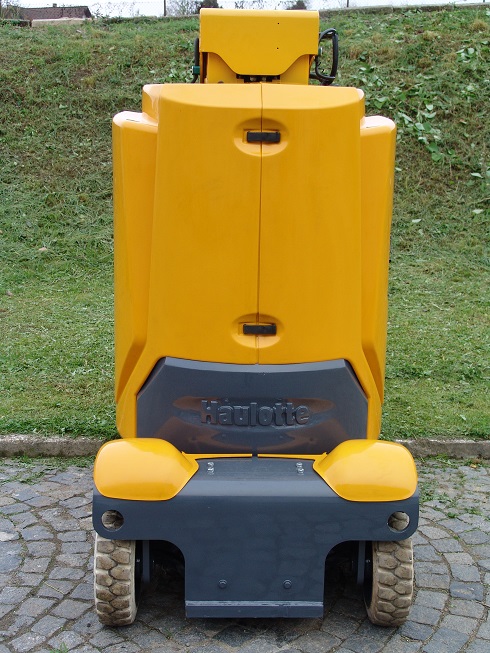

STAR 10 (ME 105451)
S10-1
In category Vertical masts

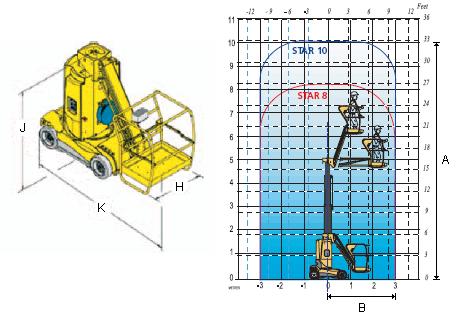

The values in the column labeled associated with working diagram.
|
Parameter
|
Identification
|
Value
|
|---|---|---|
| Manufacturer | Haulotte | |
| Type | teleskopické - aku | |
| Field of application | zpevněný podklad | |
| Design | sloupová s JIB ramenem | |
| Working height - radius (m) | A | 10 |
| Maximum outreach (m) | B | 3 |
| Cage load capacity (kg) | 200 | |
| Total machine weight (kg) | 2760 | |
| Drive | aku | |
| Cage dimensions (m) | D x C | 0,9 x 0,7 |
| Cage extension - prolongation (m) | E | - |
| Setting dimensions (m) | F x G | 2,66 x 1 |
| Clearance width (m) | H (I) | 1 |
| Clearance height (m) | J | 1,99 |
| Length (m) | K | 2,66 |
| Levelling supports | - |
