DT25 SPYDER
Compare
In the category Trailer-mounted

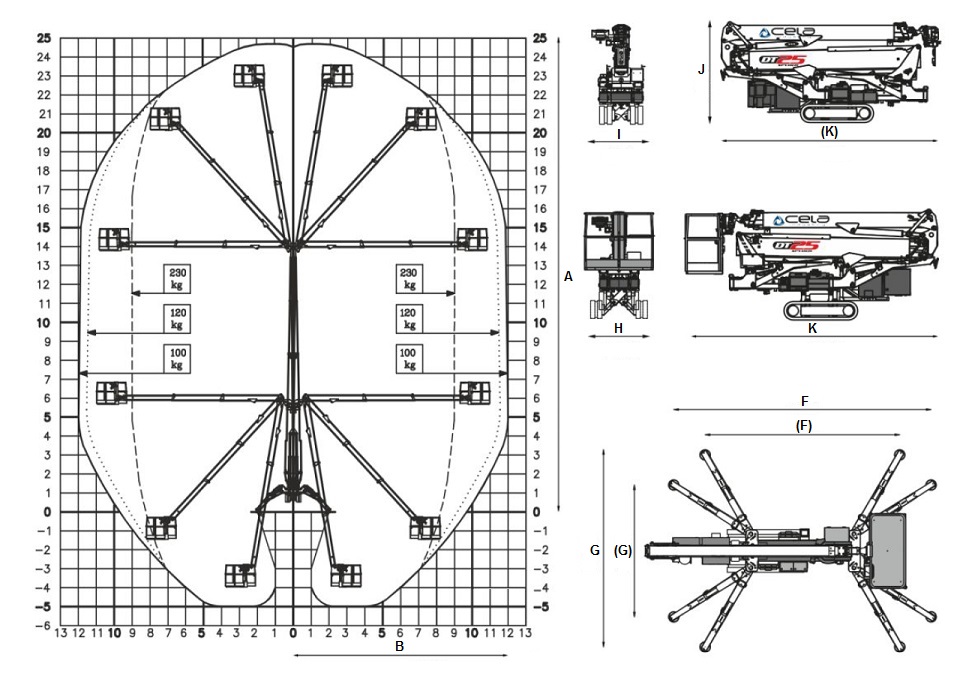

The values in the column labeled associated with working diagram.
|
Parameter
|
Identification
|
Value
|
|---|---|---|
| Manufacturer | Cela | |
| Type | Belted | |
| Field of application | Less challenging terrain | |
| Design | Articulated-telescopic | |
| Working height - radius (m) | A | 25 |
| Maximum outreach (m) | B | 12 |
| Cage load capacity (kg) | 230 | |
| Total machine weight (kg) | 2950 | |
| Drive | diesel / 230 V | |
| Cage dimensions (m) | D x C | 1,8 x 0,7 |
| Cage extension - prolongation (m) | E | - |
| Setting dimensions (m) | F x G | 4,82 (3,65) x 3,6 (2,47) |
| Clearance width (m) | H (I) | 1,15 (0,8) |
| Clearance height (m) | J | 1,98 |
| Length (m) | K | 4,92 (4,32) |
| Levelling supports | 4x |
