HR17N
Compare
In the category Articulated-telescopic battery

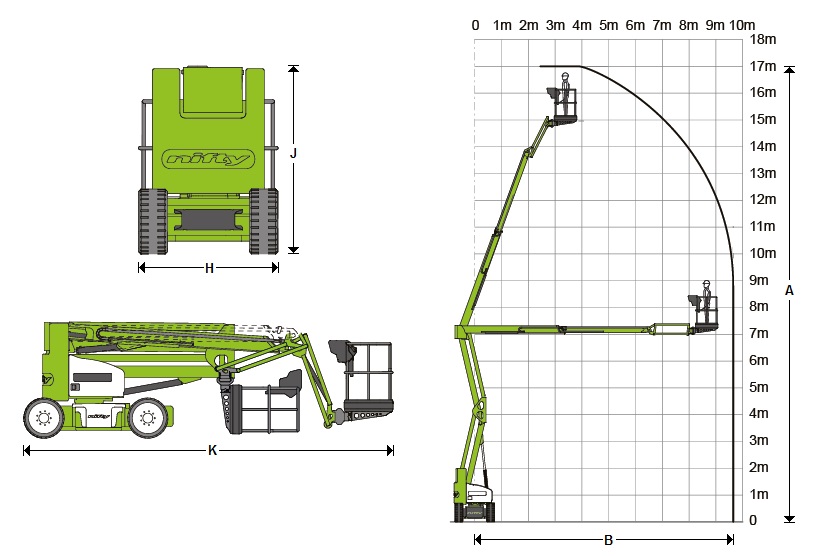

The values in the column labeled associated with working diagram.
|
Parameter
|
Identification
|
Value
|
|---|---|---|
| Manufacturer | Niftylift | |
| Type | kloubovo-teleskopické - aku | |
| Field of application | zpevněný podklad | |
| Design | kloubovo-teleskopická s JIB ramenem | |
| Working height - radius (m) | A | 17 |
| Maximum outreach (m) | B | 9.7 |
| Cage load capacity (kg) | 227 | |
| Total machine weight (kg) | 7650 | |
| Drive | aku | |
| Cage dimensions (m) | D x C | 1,5 x 0,8 |
| Cage extension - prolongation (m) | E | - |
| Setting dimensions (m) | F x G | 6,4 x 1,5 |
| Clearance width (m) | H (I) | 1,5 |
| Clearance height (m) | J | 1,99 |
| Length (m) | K | 6,4 (4,93) |
| Levelling supports | - |
