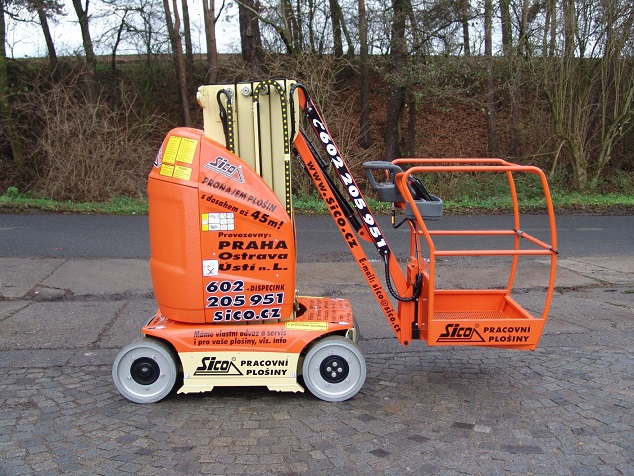

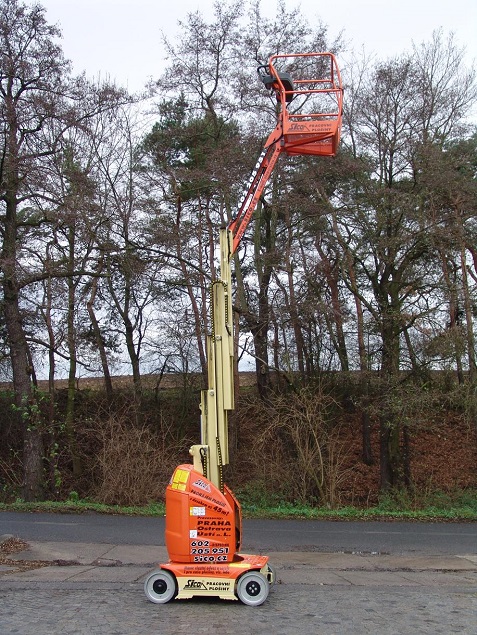

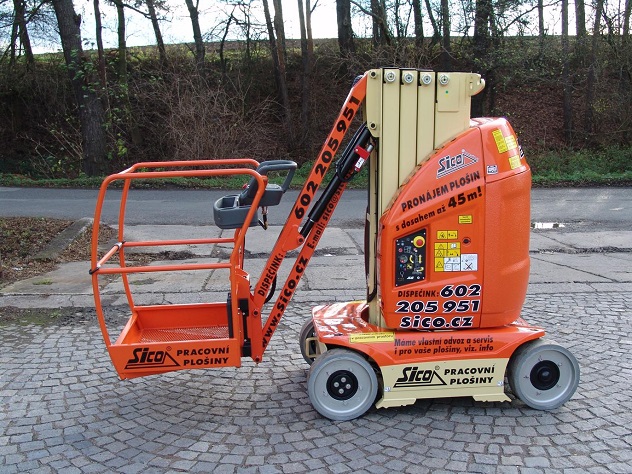

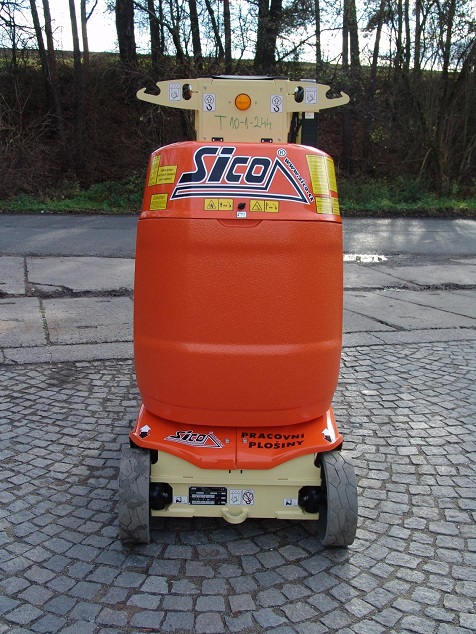

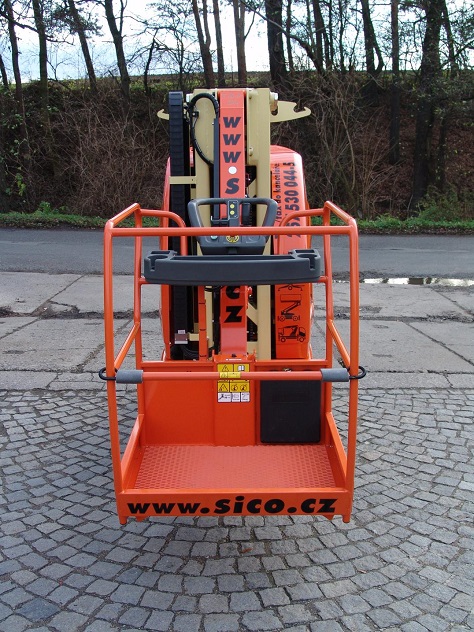

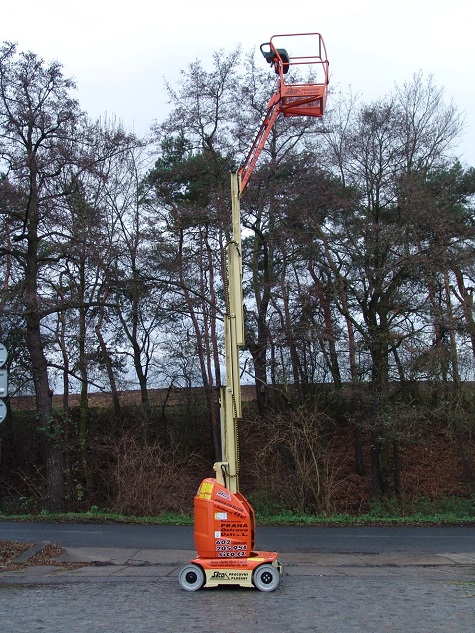

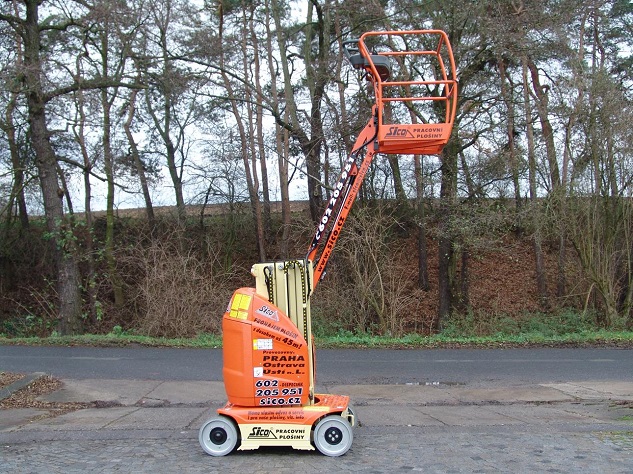

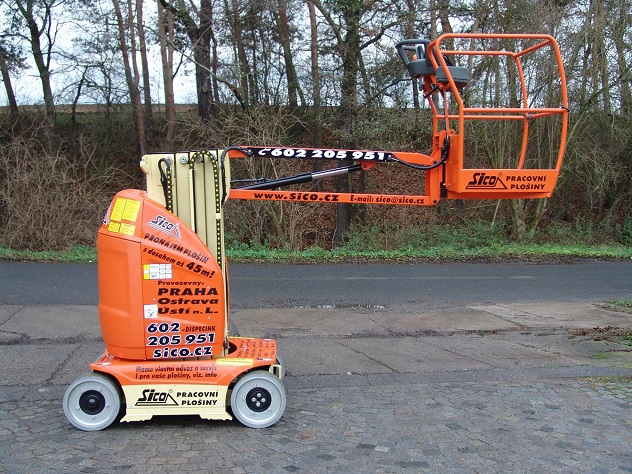

TOUCAN 10 E

Compare

In the category Vertical masts

Read more

Platform TOUCAN 10 E it is used for: Erection of interior, Film, Repairs and installation of lighting

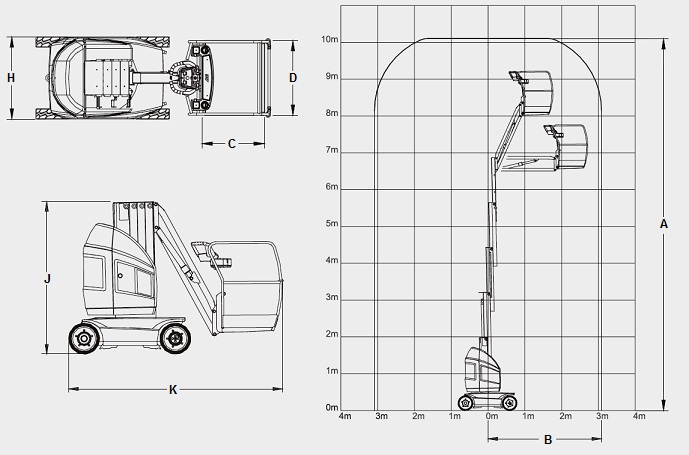

The values in the column labeled associated with working diagram.

Parameter
Identification
Value
Manufacturer JLG
Type teleskopické - aku
Field of application zpevněný podklad
Design sloupová s JIB ramenem
Working height - radius (m) A 10.1
Maximum outreach (m) B 3.08
Cage load capacity (kg) 200
Total machine weight (kg) 2989
Drive aku
Cage dimensions (m) D x C 0,9 x 0,7
Cage extension - prolongation (m) E -
Setting dimensions (m) F x G 2,82 x 0,99
Clearance width (m) H (I) 0,99
Clearance height (m) J 1,99
Length (m) K 2,82
Levelling supports -
