ZD 20 (Z 60/34)

The ZD 20 (Z 60/34) work platform uses three hydraulically operated arms to achieve the working height of 20 meters and lateral range of 11 meters.

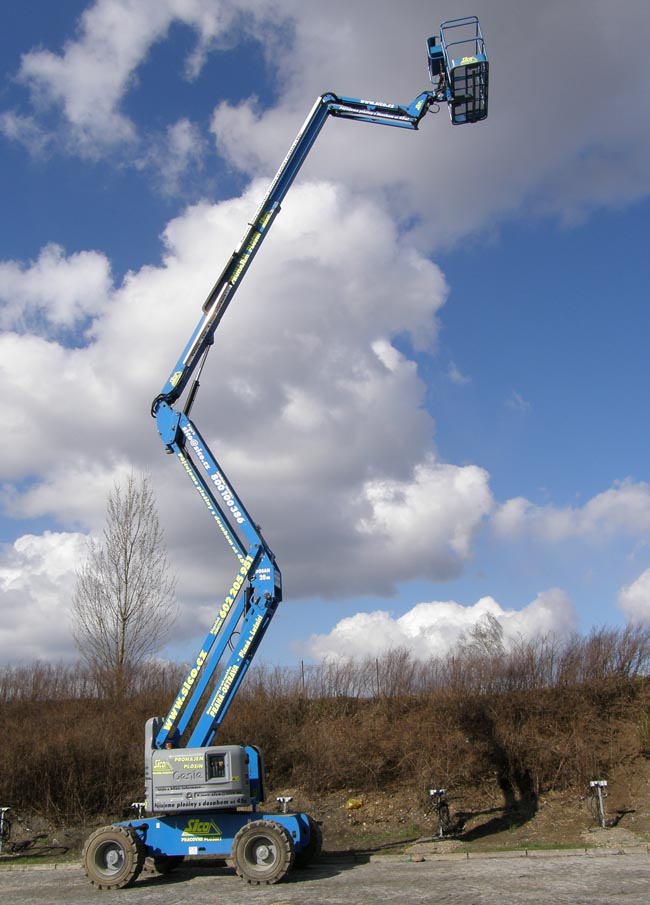

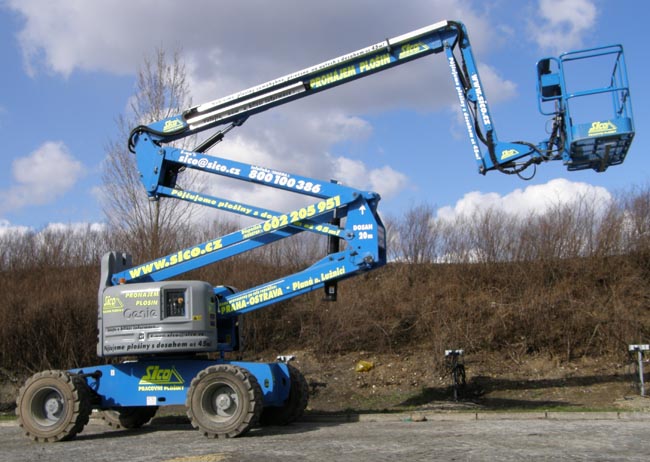

The articulated-telescopic work platform GENIE ZD 20 (Z 60/34) is a mobile lifting equipment that reaches into hard to reach places, using a system of three hydraulically operated telescopic arms with a rotating work cage attached to the so-called JIB arm. The platform is also suitable for working in difficult terrain.

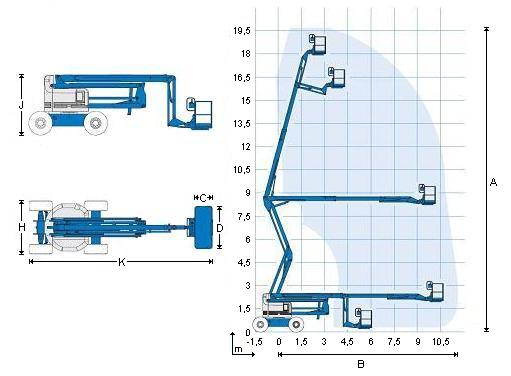

The work platform also provides access to the areas above terrain that are hardly achievable for many platforms. The rotating superstructure with installed three arms and the cage can be rotated 360 degrees. The cage can be turned up to 180 degrees. The maximum working range is 20.39 meters in height and 11.05 meters to the side.

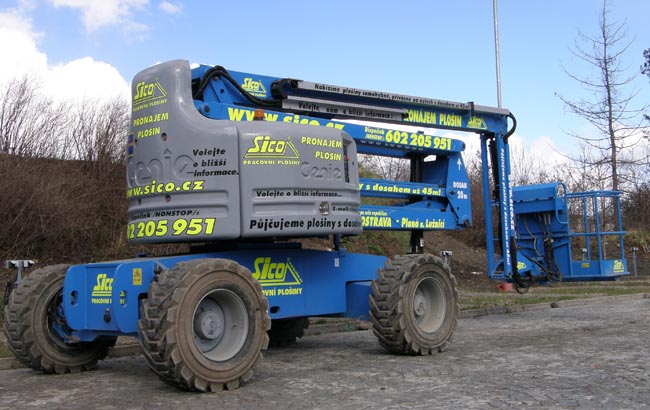

The work platform is powered by a diesel engine. Its robust design, large wheels and gradeability of 40% ensure stability and accessibility to difficult terrain. Electromagnetic brakes quickly stabilize the platform after travel and allow its immediate use. Thanks to its stability, the platform can travel to another location with extended arms.

The ZD 20 (Z 60/34) work platform meets strict safety regulations and international standards.
